What transmission is right for me? Your transmission and engine combination is very important. Your vehicles weight and how you drive it are also a major factor. Transmissions come in two basic types, and: Automatic Best transmission choice, hands down.

The Turbo Hydra-matic 350 was first used in 1969 model cars. It was developed jointly by Buick and Chevrolet to replace the two-speed Super Turbine 300 and aluminum case Powerglide transmissions. So, although it carries the Turbo Hydra-matic name, the Hydra-matic Division of General Motors had little, if anything, to do with its design. The 350 and its 250, 250c, 350c and 375b derivatives have been manufactured by Buick in its Flint, Michigan, plant and by Chevrolet in Toledo and Parma, Ohio, and Windsor, Ontario. Both Chevrolet and Buick divisions produced the TH350. For the 1981 model year, a lock-up torque converter was introduced which coincided with the new EMC control of most GM cars; This version is the THM350-C, this transmission was phased out in 1984 in GM passenger cars for the 700R4.

/ trucks and vans used the THM350-C until 1986. The lock-up torque converter was unpopular with transmission builders B&M Racing once marketed a conversion kit for THM350-Cs during the early 1980s until the advent of high stall lock-up torque converters when its overdrive counterpart (THM700R4/4L60) were modified. Gear 1 2 3 R Ratio 2.52 1.52 1.00 1.93 Pros.

Excellent gear spread between all three gears. Very low cost to build up to various levels of power handling.

Can be built up to extreme power handling capabilities. Most all transmission shops are capable of building these to at least level 1 or 2.

No TV cable to deal with. Stall converters are low in cost, and the selection is broad.

Very reliable and simple to repair if needed. Cons. Select a final gear that will allow you the best overall performance and one that allows a decent off the line acceleration, and one that will be in a tolerable rpm range at highway speed. You must have the correct stall converter for optimal performance. This can make a huge difference in the way your vehicle accelerates. One THM350 weak point was excessive end-play between the pump and center support and resulting wobble of the direct clutch drum due to both the end play and use of a relatively narrow bushing in the drum.

Add an extra thrust washer between the planetary gear and direct clutch to remove the end play and using a wider aftermarket bushing in the direct clutch drum. The relatively thin center support and lightweight matching splines in the case cause some people to beef up the case with an aftermarket case saver kit. These are becoming scarce, but there are still plenty of them around, and high performance parts are easily obtained.

You may have to go through this long story to your less than knowledgeable friends as to why you didn't choose a 700R4, and when you explain it to them, they may still think you don't know what you’re talking about. Better than a stock TH350, more expensive to build compared to TH350. Gear 1 2 3 R Ratio 2.48 1.48 1.00 2.07 Pros. Excellent gear spread. Very similar to a TH350. Strong internal parts. Simple to build or repair to stock buildup levels.

Cons. Very expensive to build up to higher power handling levels, as compared to a TH350. The TH350 has far more high performance parts available at reasonable costs. The 400 trans. Is not a practical choice. Internal rotating parts (cast iron drum) are very heavy and create a huge drag compared to most any other trans., and this is not a subtle amount of drag. The TH400 is well known to be a heavier duty trans.

Than a TH350 but this heavy duty factor was designed more for heavy vehicles that may encounter pulling heavy loads. Only the largest of the GM cars weighing around 5000 lbs had these trans.

In them, along with heavy duty pickups, usually 3/4 ton or larger trucks. Even the half ton Chevy trucks didn't come with these in them.

They will certainly hold up better than a stock built TH350, but they are not a desirable trans. For a street rod. You can build a TH350 to level two that would be superior to any stock TH400 in every way for about the same cost. Building a TH400 to a high hp handling level will cost a great deal of money. You will never see this trans in a true Pro-Street car. Only two gears, best suited for very light vehicles, under 1800 lbs. The Powerglide is a two-speed automatic transmission designed by General Motors.

It was available primarily on Chevrolet from January 1950 through 1973, although some Pontiac models also used this automatic transmission after the fire at the Hydra-Matic factory in 1953. Gear 1 2 R Ratio 1.76 1.00 1.76 Pros.

Excellent transmission to build up to just about any power handling level. Most trans. Shops are able to build this trans with ease. Very reliable, and simple to work on.

Not much to go wrong. Decent first to second gear spread. Rotational drag is very low with this trans., moreso than any automatic on the market.

Very efficient trans. Stall converters are not expensive and many choices available. Cons. Two gears, that's the problem.

Can only be run in cars that have a very high hp to weight ratio. It would be fair to say a vehicle weighing approx. 3400 lbs would require an engine output of 1000 hp or more to make it a rational choice, and even then, you would still need a decent final gear to get things moving off the line. The first gear in these is somewhat tall. Those running a T-Bucket roadster weighing around 1800 lbs.

With a 500 hp or higher engine could make great use of a Powerglide trans. Having only two gears limits having the best of both worlds when it comes to off the line acceleration and cruising at highway speed. Worst possible transmission choice. Gear 1 2 3 4 R Ratio 3.06 1.63 1.00 0.70 2.29 Pros. None, other than there are plenty of them around for a cheap price, and for good reason.

Fuel injection does make this trans. More tolerable. It will get you from point A to point B period! Cons.

Very wide first to second gear spread. First gear is a 3.06 ratio Second is a 1.62 ratio. This nearly equates to skipping from first to third gear with a manual trans. This kills acceleration when these trans go into second gear on a carbureted engine with a healthy cam and large runner intake manifold. Compare this to a TH350. First gear at 2.52 ratio and second gear is 1.52 do the math. The 3.06 first gear is so low that any final gear of above 3.55 or numerically higher will have you right at the max rpm at around 35 mph, only to then have your car fall on its face when it hits second gear, feeling like it skipped a gear.

Wheel spin is uncontrollable upon hard launches, unless you have a very tall final gear, and then you can for sure count on going nowhere quickly when second gear comes in. Overdrive would be totally useless at highway speed regardless of detuning with a tall final gear, unless you were cruising at around 100 mph. Huge cost to build up to a decent street rod level. Don't even consider a stock rebuild to handle 500 hp or more. Under hard use, the 700R4 will fail quickly. Limited as to what level these can be built up to. High performance transmission builders and parts suppliers don't even recognize this as a serious transmission.

More complex to build than a TH350 and far more expensive, especially when built up to handle high hp numbers. Having to run a cumbersome throttle value cable to the carb. This feature actually serves a good purpose, but if not set properly, it can destroy your transmission quickly. Very critical adjustment, and often overlooked.

The overdrive is actually useless with engines running decent size cams relative to the cubic inch, especially with large runner dual plane intakes, and single plane intakes are out of the question with this trans. Stall converters are double the cost of the one run in a TH350. This is not a reliable transmission in a street rod. Lowers the value of your vehicle to some degree, especially on high hp builds. These transmissions do not belong in most carbureted street rods.

You must detune an engine considerably to operate the overdrive and be able to tolerate the first to second gear drop. Could be classified as the worst mismatch of parts known on a true street rod. As a side note, I would like to mention that most of us have owned a regular stock street car with a 700R4 trans, or its electronic likeness, a 4L60E, and didn't find much of an issue with the way they operated, especially if the vehicle was fuel injected. This is because stock car engines are designed to operate totally different in the very low rpm range. They have huge amounts of off idle torque compared to the average carbureted street rod that makes 400 hp or more. This off idle instant torque allows the vehicle to keep its speed up decently when the 700R4 drops into second gear, and the same low rpm also allows the overdrive gear to operate normally at very low rpm.

There are other factors that also allow these trans. To operate at low rpm, especially on fuel injected computer driven engines. Most all the cons you see for the 700R4 exist within the GM200 Gear 1 2 3 R Ratio 2.74 1.57 1.000 2.07 Pros. Has a better gear spread than the 700R4 but not as optimal as the TH350. Not much good to say about this trans.

It certainly has a place in some special late model applications, but old school Chevy engines is not one of them. Cons. This transmission can cost up to three times more to build up to a decent power handling level compared to a built up TH350.

Cannot hold up to high torque engine builds unless an enormous amount of money is spent on this trans. This trans is not a reliable trans.

Compared to any of the early GM trans. Electronically controlled trans. Most of the same issues as the 700R4. Terrible choice to run in an old school carbureted engine.

Gear 1 2 3 4 R Ratio 3.059 1.625 1.000 0.696 2.29 Pros. No TV cable to deal with or shifting linkage. It has pump pressure control and shifting via electronics. Not much good to say about this expensive trans. It is virtually a 700R4 with a modern twist. Cons.

Very expensive to build up to a high power handling level. Can cost up to $4,000 to build this trans up to a decent level. Computer controlled engines may require this unless you bypass the car’s computer system. Very complex!.

Pointless to run such a terrible transmission. If you insist on such a trans, the 4L80-E is a better choice, as it has a normal gear spread, and is a much stronger trans. Still pointless to use with an old school carbureted engine. Manual Don't forget to upgrade your clutch and flywheel components. Pros. High quality manual transmissions can be very expensive. Excellent acceleration at any speed due to many selective gear ratios.

Finding a gear at any cruising speed to hit it hard is easily accomplished with a manual compared to an automatic. More efficient delivery of horsepower to the rear wheels with a manual trans.

Versus an automatic. In other words, less loss of power due to slippage as encountered with an automatic transmission. For some people, the fun factor of shifting gears is one of the high points of owning a street rod.

Very reliable, long lasting. Low maintenance. Simple to change out a clutch if needed. Cons. Can be very expensive to purchase a high quality modern manual trans.

And high performance clutch and flywheel, especially the Tremec Series. Can be somewhat complex to change over from an auto to a manual trans. If you think your car is going to run faster with a manual versus an auto, you will be greatly disappointed.

The automatic transmission can not only shift much faster, but off line acceleration can be controlled to a much greater degree. This is why most drag cars have automatic transmissions. All things equal, a car equipped with an auto trans will outrun one equipped with a regular street rod manual with great ease. Missing gears when racing can cause damage to your engine, and loss of control of your vehicle should you drop into the previous gear during an aggressive run.

Been there a couple times, dropped a valve in brand new Lotus Esprit shifting out of second into first rather than third, and locked up the back wheels on a Dodge Viper shifting into second rather than fourth at high speed. Nearly lost control of the car at around 80 mph. If you’re deciding to run a 5 or 6 speed manual trans because of the overdrive gear, be aware that most engines built with large lopey cams, and single plane intakes running a carb will usually not allow effective use of the overdrive gear.

transmissions are very popular and highly advanced. They are expensive. They tend to be notchy to shift when new. Takes many miles before they become easy to shift. They can be difficult to install in some early model classic cars, as they are huge compared to early model transmissions.

They can cost a great deal of money to rebuild if needed. Still about the best manual trans out there, and can handle very high horsepower levels.

SHARE THIS ARTICLE: Please feel free to share this article on Facebook, in Forums, or with any Clubs you participate in. You can copy and paste this link to share: Automatic Transmissions Bolting an older transmission to an LS engine requires specialized spacers and flexplates because the Gen III/IV engines are shorter. If you simply bolt an old-style converter to an LS engine without a spacer, you will have major problems after only a few miles of driving. The pump seal will be ruined and will start to leak, causing the pump to fail.

The converter doesn’t fit and will not center on the back of the crank. To make up for the difference, special conversion flexplates are required. The GM 4L60E is the most popular and most common automatic transmission coupled to a Gen III/IV engine because it efficiently transmits power to the driveline, it’s strong, and it’s reliable. The overdrive is electronically controlled for precise performance. An evolution of the popular 700R4, the 4L60E, is a popular swap transmission.

(Photo Courtesy General Motors) Flexplate The 6.0-liter Vortec with a 4l80E transmission is the only Gen III/ IV engine that accepts an early GM transmission without a flexplat adapter or spacer. These vehicles came with the GM spacer and bolts and the flat factory flexplate. These are basically the same components needed for the older transmission swap, just performed at the factory. General Motors offers the spacer plate and longer bolts over-the-counter. TCI has conversion flexplates for automatic transmissions and kits that include the spacer and longer bolts. You must use a crankshaft spacer, such as the Hughes Performance, TCI, or GM spacer and bolts, or a custom converter must be made with a longer-crank hub. The Bowtie Overdrives LS swap torqueconverter eliminates the need to use a spacer; it bolts directly to the stock flexplate.

If you’re installing a used engine, the best solution for the transmission fit issues is to use the transmission that came with the engine. Then all you have to do is fit the transmission to the car.

If you are going to run any automatic transmission other than the correct late-model automatic, you need an adapter ring like this one from General Motors. It adds the required space so the nose of the torque converter fits with the crank. (Photo Courtesy Street & Performance) The flexplate on the right is the adapter plate, which allows an early-style torque converter to bolt up. The unit on the left is the stock unit.

Note the dish on the stock flexplate; this is another reason you must use an adapter flexplate for older transmissions. (Photo Courtesy Street & Performance) This flexplate adapter from TCI allows you to use an older GM automatictransmission with a Gen III/IV engine and it’s also SFI certified for racing.

(Photo Courtesy TCI) Here, the dish is in the center of the stock flexplate. Because the flexplate is not flat like previous GM units, a special adapter is required when combining the LS with older GM transmissions. (Photo Courtesy Street &Performance) Flywheels are more than just a connector between the transmission and the engine; they are an integral component to the clutch. The flywheel can also affect the driving characteristics of the engine. A heavy flywheel holds more inertia for smoother shifts and easier street driving. A lighter flywheel allows for quicker revs and shifts; they are great for road racing.

This is a RAM 19.2-pound LS7 flywheel bolted to an LS3. (Photo Courtesy Blane Burnett) The clutch mounts between the flywheel and pressure plate.

This is a single-disc LS7 system. If you require more power, twin-disc clutch kits are available for the LS-series engine. (Photo Courtesy Blane Burnett) TV Cable Adapting the non-electronicallycontrolled 700-R4 and 200-4R requires a little more work. The most important component of these two overdrive transmissions is the throttle-valve cable, or TV cable.

This crucial system tells the transmission when to shift and determines the amount of pressure sent to the clutches. If this cable is off by even the slightest amount, the clutches do not fully engage, causing the transmission to burn up and eventually fail. Adapting the TV cable to the throttle body on an LS engine is challenging, and you need to maintain the right geometry.

Doing this requires in-depth knowledge of the TV cable system, and is not suggested for novices. Aftermarket manufacturers, such as Bowtie Overdrives, offer bolt-on solutions for conversion from TV cable to throttle body. It looks a little odd compared to the earlier Gen I engines, but General Motors left off one of the boltholes on the back of the block. Other than looks, there is no difference in the bolt pattern. Any older GM bellhousing bolts up. (Photo Courtesy Street & Performance) On older overdrive transmissions, such as this 200-4R, the TV cable is a crucial component.

If it is not set right, the transmission may burn out within a few miles, so take the time to ensure it’s properly adjusted. Computer Controls Almost all Gen III/IV engines in salvage yards, at swap meets, and on Internet sites already have a transmission attached, and the transmission is generally an automatic. The most common GM automatic is the 4L60E or the 4L65E variant (they are the same dimensionally, but the -65 version has an extra pinion gear internally), depending on whether the engine came from a car or a truck. The larger Vortec engines were typically mated to the 4L80E (and 4L85E variant) automatic transmission. These transmissions require computer controls that are contained in the factory ECM.

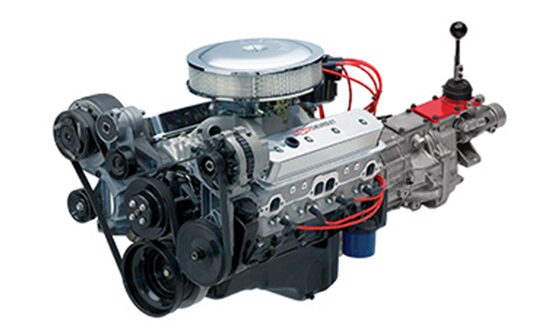

350 Manual Transmission

However, these transmissions can be purchased separately through the aftermarket for carbureted LS conversions or when an aftermarket electronic fuel injection (EFI) controller is used. Mechanical/electronic adapters bolt onto the transmission and feed the electronic signal to the computer.

A cable then connects to the other side. These are available from Street & Performance, AutoMeter, and most gauge suppliers.

(Photo Courtesy Street & Performance) These units from Dakota Digital help convert the transmission’s VSS signal to non-programmable electronic speedometers if yours is not compatible with the stock VSS signal. (Photo Courtesy Street & Performance) If the radiator does not have a built-in transmission cooler, it’s necessary to add an external cooler when running an automatic. This unit from TCI keeps just about any GM high-performance transmission cool. It is placed in front of the radiator. For the newer transmissions, you need to adapt the speedometer output to mechanical output in order to use a mechanical speedometer.

These mechanical speedometer tailshafts are for the 4L60E and 4L65E transmissions. (Photo Courtesy Street & Performance) The tailshaft gear drives the speedometer gear, which in turn, drives the speedometer cable to the speedometer. Adapters are available for electronic speedometers, as well as different gears for tuning mechanical speedometers. (Photo Courtesy Street & Performance) This tailshaft is for the 4L80E transmission commonly found in larger trucks.

The 4L80E can handle a lot of torque; it is quickly becoming the go-to automatic for high-performance LS swaps. (Photo Courtesy Street & Performance) In 2006, General Motors released a couple of 6-speed automatics for their vehicles. The 6L80 and 6L90 transmissions are used in heavy-duty GM trucks and most of the performance cars. The Sigma platform, which covers the Cadillac CTS line, uses either the 5L40/5L50 5-speed or the 6L45/6L50 6-speed automatics. Custom Swaps The aftermarket has a vast number of custom-application GM transmissions that work great for LS swaps.

One in particular is the TCI 6X 6-speed automatic. It is based on the 4L80E but with new guts to provide six forward gears capable of handling 850 hp. These can be configured in several ways and come with a TCI transmission controller. They can even be set up for a paddle shifter.

The Tremec T-56 6-speed manual is the most popular transmission for LS swaps. It bolts right up and requires only slight trimming or denting of the transmission tunnel to fit most GM cars and trucks. (Photo Courtesy Street & Performance) T56 Manual Transmission The 6-speed T56 manual is the most popular transmission used in LS engine swaps. Formerly offered on the 1998–2002 F-Body and GTO, the T56 bellhousing, flywheel, and clutch pack are readily available.

The T56 transmission fits into most GM muscle cars, requiring only minor modifications, if any, to the transmission tunnel. Swap kits help make the install easier. Classic Motorsports Group offers a kit for first-generation Camaros, Firebirds, and Novas The 1968–1974 Nova requires that the transmission tunnel be enlarged. The clutch mechanism, however, definitely requires some modifications. There are several ways to get around the clutch mechanism, such as using an older-style manual clutch or a modern hydraulic clutch. As a side note, the 1993–1997 T56s use an external clutch slave cylinder, while the later 1998-up units use an internal slave cylinder. The 1998-up T56 transmission is better suited for the Gen III/IV engines with the correct bolt pattern and input shaft, but McLeod offers components that adapt older T56 transmissions to the Gen III/IV engines.

Mounting Plate Street & Performance offers a few components that assist in adapting the hydraulic clutch to most GM vehicles, and they can be modified to work with other vehicles as well. The first component is the slave cylinder mounting plate. Available in two versions, 1958–1964 and 1967-up, this plate mounts between the vacuum booster (or master cylinder) and the firewall. The mount holds the master cylinder (GM PN 12570277) to the hydraulic clutch. The clutch fluid reservoir is mounted on the firewall. Clutch Pedal Adapter Tab To bolt the original clutch pedal to the master cylinder pushrod, an adapter tab must be installed on the original pedal.

This tab must be fabricated and welded to the clutch pedal. The placement of this tab is absolutely critical. If the tab is too high, the pushrod does not fully engage. If it is placed too low, the pedal is hard to push. Using a piece of 3/16-inch-thick mild plate steel cut to 1 x 31⁄18 inches, the tab should be bent into a Zshape,.300 inch wide, starting at the 1.712-inch mark. Once bent, the tab is drilled with a 3/8-inch hole, measured from the long side of the tab at 2.629 inches on center. The placement of the tab on the pedal is 1.769 inches from the center of the square hole at the top of the pedal, and it sits at 114 degrees from the pedal side to the top of the tab.

Late-model transmissions and LS engines do not make installing a mechanical clutch simple. Although it can be done, it may not be worth the effort. A hydraulic throw-out bearing setup is the simplest solution.

(Photo Courtesy Blane Burnett) Adapter brackets are available for mounting the hydraulic clutch unit to the firewall based on the brake booster mounts. Brackets are available from Street & Performance (shown), Detroit Speed & Engineering, and several others; or you can make your own. (Photo Courtesy Street & Performance) The plate bolts in directly behind the brake booster, then the clutch master cylinder bolts on. This is a finished installation. The second line coming off the master cylinder leads to the remote-mount fluid reservoir.

(Photo Courtesy Street & Performance) Adapting the hydraulic clutch requires some modification of the stock clutch pedal. This diagram works for all GM muscle cars and early F-Bodies, but double-check your particular application before welding anything. (Illustration Courtesy Street & Performance) Here is the tab in place just before welding it on.

It must be correctly positioned. Remember, this is only necessary when using a hydraulic clutch.

(Photo Courtesy Street & Performance) Shifters are interchangeable as long as you swap the receiver (the part that the shifter lever ball operates) bolted inside the transmission. It is retained by a roll pin. (Photo Courtesy Street & Performance) If the car did not have a manual transmission before, cut the hole in the ideal location, similar to this 1969 Camaro. (Photo Courtesy Street & Performance) If your car had a manual transmission and you want to retain the stock console, you need an adjustable shifter, such as this one from Driveline Components Company. This shifter allows for clearance of some floorpans, where a stock-style shifter doesn’t.

(Photo Courtesy Street & Performance) The tab should then be fully welded to the pedal arm. The small, triangular-shaped section of the tab that overhangs the pedal on the underside is trimmed off. The clutch pushrod bolts to the tab via a 3/8-inch bolt and locknut. It is possible to adapt the LS engine to use a manual clutch linkage. If you are installing an LS and manual transmission in a GM vehicle originally available with a manual clutch setup, you need linkage, clutch, Z-bar, and related components.

The Gen III/IV blocks are not drilled for the Z-bar, which makes it difficult to adapt the LS engine to a manual linkage. Fabricating a simple bracket that locates using the bellhousing bolts and attaches to the Z-bar is the best solution.

Shifter The T56 uses a top-mounted shifter at the rear of the transmission, which creates a compatibility issue for the stock console or shifter location in GM vehicles. This is easily rectified using the Street & Performance shifter relocator kit. As engine and transmission mounts differ, each shifter must be ordered individually. The T56 relocator shifter can move the shifter 1 to 4.1 inches forward. In addition, the shifter can be centered or offset to the left or right. If you choose to use the stock T56 shifter, it is placed approximately 4 to 5 inches rearward from the stock location, 1 to 2 inches rearward for 1970–1974 F-Bodies, and 4 to 5 inches rearward in the 1968–1974 Nova. Here are a GTO shifter (left) and a new Hurst F-Body-style shifter (right).

The placement of the handle is critical. The Hurst shifter is more accurate through precision machining. (Photo Courtesy Blane Burnett) Tremec TKO Manual Transmission Another popular manual swap is the Tremec TKO 500 or TKO 600.

These 5-speed manual transmissions are very popular among GM muscle builders and offer excellent performance. Classic Motorsports Group offers complete kits for installing the TKO into almost any GM muscle car and 1960–1972 Chevy trucks.

These kits feature hydraulic clutches, bellhousing, and all the components to make the installation simple and easy. TKO transmissions use a topmounted shifter. To adapt these shifters to match the stock location, a Hurst Blackjack shifter can reposition the shifter to the ideal location. The TKO transmission does not fit quite as neatly under the body as the T56 does. This transmission fits some GM vehicles without modify cations, while others require serious cutting. The Tri-Five Chevy and similar-era GM cars, 1967–1981 F-Body (Camaro and Firebird), and C1–C3 (1956–1981) Corvettes do not require any floorpan modifications.

The C4 Corvettes fit the TKO, but the stock shifter box must be removed and patched. The 1964–1972 GM A-Body (Chevy Chevelle, Buick GS, Olds 442, etc.), 1960–1969 B-Body (Impala), and 1962 Novas all require a large section of the transmission tunnel to be removed and replaced with areshaped panel. The Classic Motorsports kits come with the requisite patch panel, cut guide, and instructions, taking the guesswork out of the swap. For reasons that may include nostalgia, economy, personal taste, simplicity, or originality, some builders prefer to keep the stock manual gearbox in their muscle car or truck when swapping in a Gen III/IV engine. These swaps bolt up similarly to the automatic transmissions, but require a few specialized parts.

Bellhousing The input shaft is too far from the crank with a stock bellhousing (the same situation as with the automatic transmission). There are two ways to remedy this problem.

The first and best way is to use a retrofit bellhousing and flywheel package. General Motors sells these components individually through its Chevrolet Performance dealers. The Chevrolet Performance retrofit bellhousing features thick-wall titanium and aluminum alloy construction; CNC machining, including spot-faced mounting holes; precision dowel pin holes; and bores that yield a precise fit.

This bellhousing bolts to all GM Gen III/IV V-8 engines for the installation of the Muncie, T-10, Saginaw, Richmond, Tremec TKO, Tremec T56-011, and other specially built transmissions. This bellhousing works with stock clutch linkage and hydraulic clutch actuators, and includes steel inspection cover and mounting hardware. It is also designed to use a 168-tooth flywheel and standard GM starter. This bellhousing is lightweight (15 pounds) and uses all factory linkage parts, including clutch forks, Z-bar, rubber dust boot, etc.

According to Chevrolet Performance, the LS Truck flywheel (PN 12561680), 12-inch clutch and pressure plate (PN RAM88744), and six metric pressure plate bolts (PN 12561465) must be used. Aftermarket Kits Clutch kits are available from aftermarket sources such as McLeod and Advance Adapters. They are designed to adapt the Gen III/IV engines to early-style GM manual transmissions, such as the M21/M22, SM420, SM465, and NV4500. Additionally, these kits allow the installation of Richmond Gear manual transmissions, such as the Richmond Overdrive 6-speed. The Advance Adapters clutch kits typically include a custom flywheel, 11-mm flywheel bolts, 11-inch centerforce pressure plate and disc, pilot bushing spacer, throw-out bearing, collector gasket, 10-mm bellhousing bolts, 10-mm lock washers, and XRP dowel bolts.

If you want to assemble your own parts, the key is to match the flywheel and clutch to the engine, while making sure the splines on the clutch disc match the transmission. GM transmissions use 10- and 26-spline input shafts; early manuals (before 1971) typically have 10 splines, and later units have 26 splines. That being said, some other aftermarket manual transmissions have either 10 or 26 splines.

A 26-spline shaft is more durable than a 10-spline shaft because it distributes the input load better. This kit from Advance Adapters allows any older GM manual transmission to bolt up to a Gen III/IV engine. It includes the adapter flywheel, spacers, clutch, and everything else needed to make an older transmission, such as the M22, fit an LS engine. (Photo Courtesy Advance Adapters Inc.) The T56 needs a different tailhousing for a mechanical speedometer. Most stock units have electronic sensors for electronic speedos.

(Photo Courtesy Street & Performance) As a side note, the Advance Adapters kit can be used with Gen III engines mounted to Jeep manual transmissions (PN AX15/NV3550) and Ford manual transmissions (PN NP435/T-18). The throw-out bearing retainer must be machined to accept the adapter bearing, and a different clutch disc is likely needed. The other option is to use an extended bearing. This retains the original old-style bellhousing, matches the clutch to the engine, and uses a longer bearing to make up the difference for the shorter crank flange.

350 Sbc Manually Turn Over Engine

There are several manufacturers of these bearings, including McLeod (PN 8617) and General Motors (PN 12557583). By using the old-style bellhousing, you should have a provision for the Z-bar and be able to run a manual clutch setup.

Tri-Five Chevy The 1955–1957 Chevrolet Tri-Five, or Shoebox, as these are often called, is likely the single most iconic model ever created. The base 110, mid-range 210, and the ubiquitous Bel Air had many options. As the first Chevy to receive the new-for-1955 small-block V-8, it’s the perfect candidate to swap in an LS-based power plant. The guys at Chevrolet Performance Parts certainly agree, considering they chose a 1955 Bel Air to showcase the Chevrolet Performance 50-state-legal E-Rod LS3-based engine package. Since its completion, the E-Rod has been to many shows across the country. Here, Mike Copeland, Project Manager of the E-Rod build for Chevrolet Division, shares the details about this build of a 1955 Chevy. He explains how they shoehorned the LS3 into the stock chassis and the problems they faced.

One of the goals for this project was to use as many factory components as possible, and most of the build came straight from the Chevrolet Performance Parts catalog. Adapter Plates “We used a set of off-the-shelf LS-to-small-block-Chevy adapter plates with traditional Chevy motor mounts from Chevrolet Performance,” Copeland said. “Because we wanted to take advantage of engine placement for steering clearance, we made our own frame towers.” That turned out to be a key issue for the build, and is an issue for most Tri-Five Chevy cars, as well as the other Tri-Five GM platforms, such as Buick and Oldsmobile. The standard Tri-Five motor mount is a biscuit-style mount that uses replaceable rubber bushings. Crossmembers The transmission crossmember for Tri-Five cars must be fabricated or purchased from a specialty dealer.

The issue here is that the later-model transmission designs (3-speed automatics) are quite different from the early non-corporate designs. The factory crossmembers share nothing with the later designs and are in the way of most of the later transmissions. Several aftermarket swap versions are available from various manufacturers, such as Street & Performance, Southern Performance Systems, and Hedman Hedders. All of these offer swap kits with motor mounts and transmission crossmembers. Steering Linkage The steering linkage is the biggest challenge facing Tri-Five swappers.

Using the stock steering linkage, the factory frame tower placement puts the oil pan directly in the way. One option is to modify the oil pan or modify the frame towers. The crew at General Motors actually did a little of both. One trick that they employed was to set the engine as far back as possible, just before the engine hit the firewall, with a 3-degree down-angle, to get the best possible positioning.

The E-Rod LS3 was packaged with a truck oil pan that was modified with a cutout on either side to clear the steering linkage. Once the pan was modified, the steering cleared with ease, lock to lock. Some aftermarket swap kits use the LH8 oil pan; others use a modified F-Body oil pan. There are also aftermarket pans designed specifically to fit the 1955–1957 chassis, such as the Milodon LS swap oil pan (PN 30916K) specifically for the Tri-Five to eliminate the steering clearance issue. The Tri-Five Chevy works well with the Corvette accessory drive, which was taken directly from the Chevrolet Performance catalog. Exhaust System Another trick the engineers put to use was in the exhaust department. Instead of using headers, Copeland showcased some GM pr oduction parts with a set of Chevy Colorado (GM’s mid-size truck) LS manifolds.

The team fabricated new fl angesand lead pipes to connect to the E-Rod mini-catalytic converters and mufflers. The rest of the exhaust was made from 2.5-inch stainless-steel tubing.

Fuel System The LS-series engines require 60 psi of fuel pressure, and there are several ways of getting the fuel to the engine. All EFI engines require a return-style fuel system, but this does not always mean two full-length fuel lines must be run. The C5 Corvette came up with a special rear-mount filter/regulator that provides the necessary 60 psi of fuel pressure to the engine, but vents the excess fuel directly back to the tank. Copeland took advantage of this, installing a C5 Corvette in-tank pump assembly in a stock-style 1955 Chevy fuel tank and used the C5 filter/regulator under the car. This keeps the engine bay clean, with just the one fuel supply line. Wiring Because the E-Rod is a complete engine package, the wiring and ECM are included. This makes the installation a plug-and-play operation—it literally cannot be any easier to install.

The ECM, fuse, and relay center were mounted to a fabricated bracket on the driver-side inner fender under the hood. Finished Project The end result is a seriously clean custom ride that has in excess of 160 percent more horsepower than the 265 V-8 that originally powered it. When I asked Copeland what he would change if he had to build the car over again, he told me, “If I were going to build the car today, I would not change a single thing. The car has made a number of trips across the country and never misses a beat.” Written by Jefferson Bryant and Posted with Permission of CarTechBooks.
